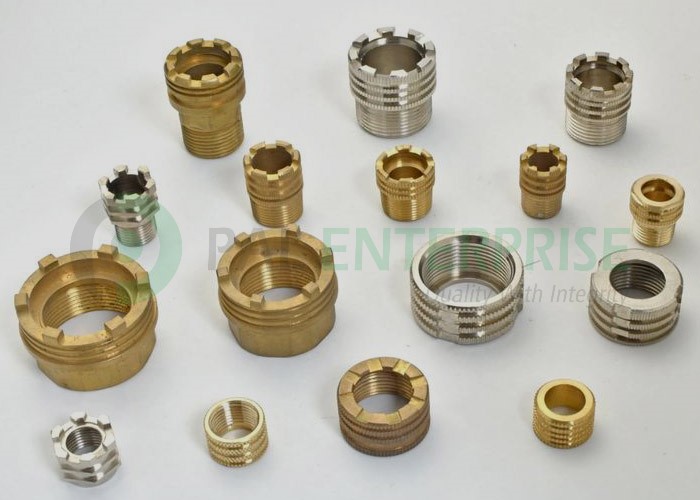

Brass Moulding Inserts
Description
Brass moulding inserts are a fastener that provides a secure and reliable hold in a plastic application. They are made from high-quality brass alloy and they come in a variety of sizes to fit specific requirements. they can be used in a different technique to insert using a press, ultrasonic, or heat. Brass molding inserts nut is normally used in various industries, including plastic injection moulding, electrical, automobile, laptop, wood, marine, and construction. They are used in the manufacturing of automotive parts, plastic injection molding, marine equipment, electrical components, and construction materials.
| Types of Brass Inserts: | » Self Tapping Inserts » Brass Tappex Type Inserts » Press Lock Type Inserts » Cross Knurled Inserts |
» Brass Helical Knurled Inserts » Brass Round Knurled Inserts » Brass Hexagonal Inserts » Brass Square Inserts |
| Material : | » Free Cutting Brass IS 319 Type (I) or » Free Cutting Brass as per BS 249 Type (I) or » High Grade Free Cutting Brass » CDA 360 Brass » CZ-360 High Grade Brass » Any Special Brass Material Composition as per customer requirements. |
|
| Features : | » Threads as per International Go & Not Go Standards. » Deep Groove for maximum Pull Out Resistance. » Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the brass inserts. » Knurling Available: » Diamond » Straight » Unidirectional » Both blind and through brass inserts are available with no minimum Qty. |
|
| Threads : | ISO Metric (MM) / BA / BSW / BSP / BSPT / BSF / BSB / UNC / UNF / UNEF / NPT / NPS / Specified Threads Any threads as per client specification. | |
| Length / Size : | Begins from M2 or equivalent threads and up to any size as per custom designs or requirements. | |
| Finish & Coating : | Natural, Nickle Plated, Tin Plated or any coating as per customer specification. | |
“Any kind of Brass Moulding Inserts can be developed and supplied exactly as per customer specification.
